MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length

Brand Name : UTOPTEK

Model Number : MPO/M/UPC-MPO/M/UPC-12B-OM4-3.0-LSZH

Certification : CE FCC RoHs

Place of Origin : China

MOQ : 2

Payment Terms : L/C, T/T, Western Union,Paypal,Alipay

Supply Ability : 1000K per month

Delivery Time : 1-3working days

Packaging Details : 1pc to one bag

Fiber connector : MPO/MTP female or male optional

Cable Diameter : 2.0/3.0mm optional

Sheath Material : PVC/LSZH

Ferrule Type : UPC

Cable Type : Om3/OM4, MMF

Cable length : 1m, 2m, 5m, 10m, 20m or Customized

Fiber mode : Multi mode

Fiber Type : 50/125; 62.5/125; OM3-150/300, OM4

Working Temp. : -20~70°c

Package : Bag Packing(1PCS)

Contact Now

MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length

MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized lengthMPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length

1. Features

  • High dense spaces
  • Ceramic ferrules connectors
  • Low insertion loss,high return loss
  • Half the size of standard connector
  • Excellent mechanical endurance
  • High credibility and stability
  • Good in repeatability and exchangeability
  • 100% Insertion,Return Loss, End face and Interference inspection


2. Applications

  • Telecommunication
  • CATV,FTTH,LAN
  • Fiber optic sensors
  • Optical transmission system
  • Test equipment

3. Technical sheet:

Parameter FC,SC,LC ST,MU MTRJ
SM MM SM MM SM MM
UPC APC UPC UPC UPC UPC UPC
Operating Wavelength(nm) 1310, 1550 850, 1300 1310, 1550 850, 1300 1310, 1550 850, 1300
Insertion Loss(dB) ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2
Return Loss(dB) ≥50 ≥60 ≥35 ≥50 ≥35 ≥50 ≥35
Repeatability(dB) ≤0.1
Interchangeability(dB) ≤0.2
Plug times(times) ≥1000
Tensil Strength(N) ≥100
Durability(dB) ≤0.2
Operating temperature(ºC) -45~+75
Storage temperature(ºC) -45~+85

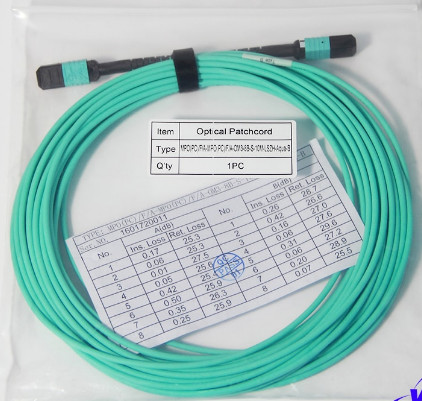

4. Package:

MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length

5. Product pictures:

MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized lengthMPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized lengthMPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized lengthMPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length
